Optics

Light guidance

This device is part of a display. You can plug e.g. RGB fibres from the back and use it as a programmable display.

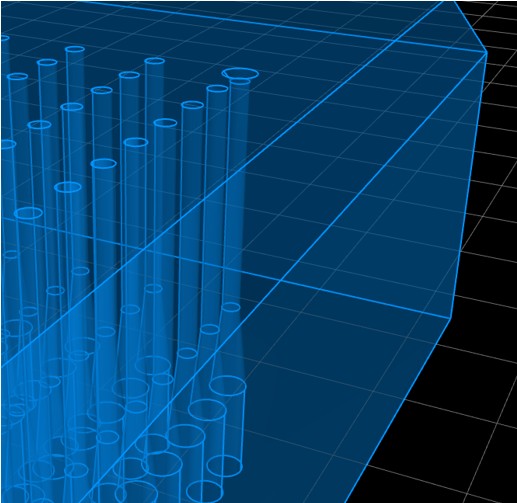

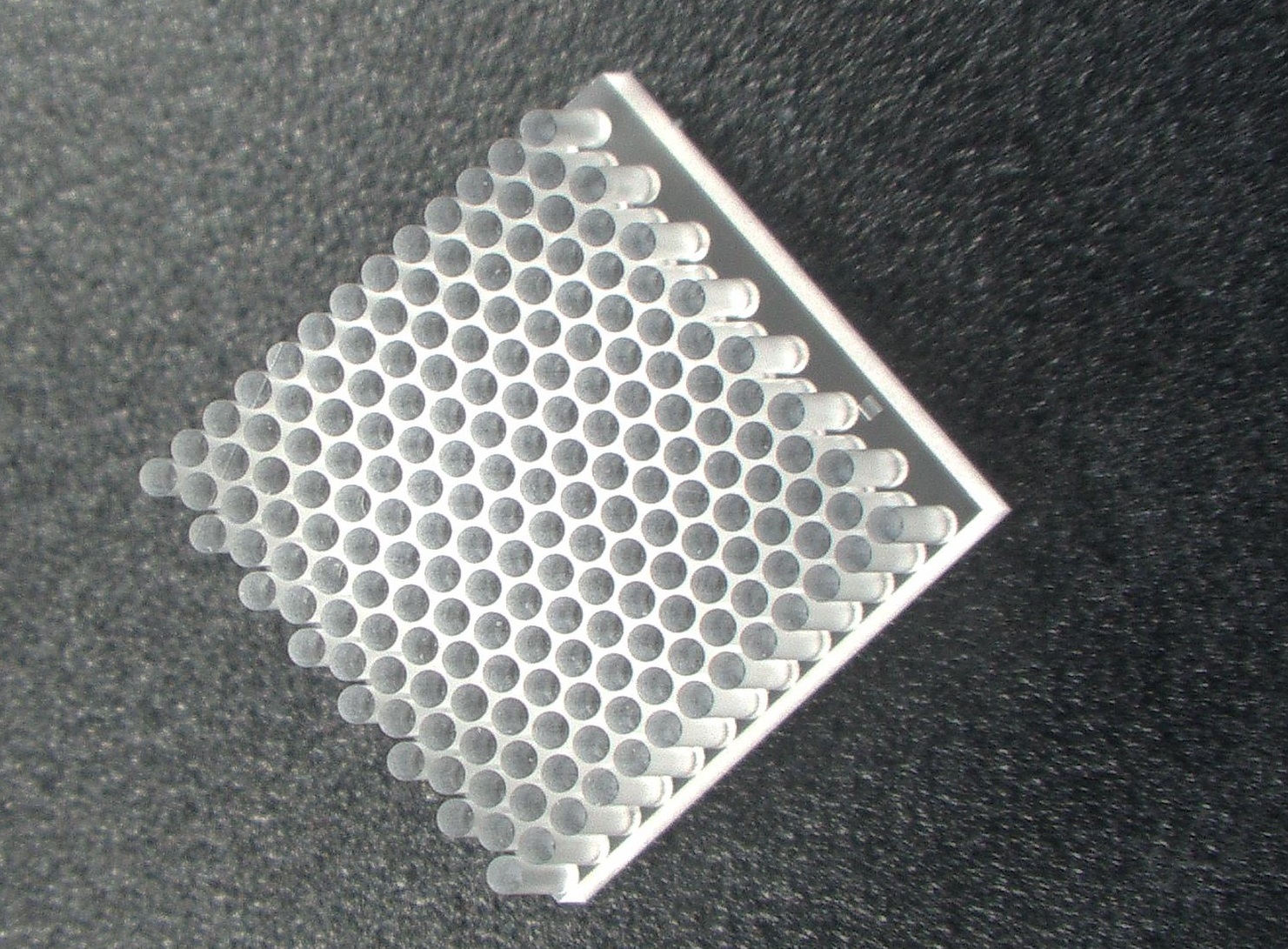

2D Matrix / Fibre array

  • Individual positioning of the holes
  • Customized couplers
  • Dimension and positioning down to 1µm accuracy
  • Different glass types available

Optical funtions

Design by Uni Marburg, Prof. Martin Koch

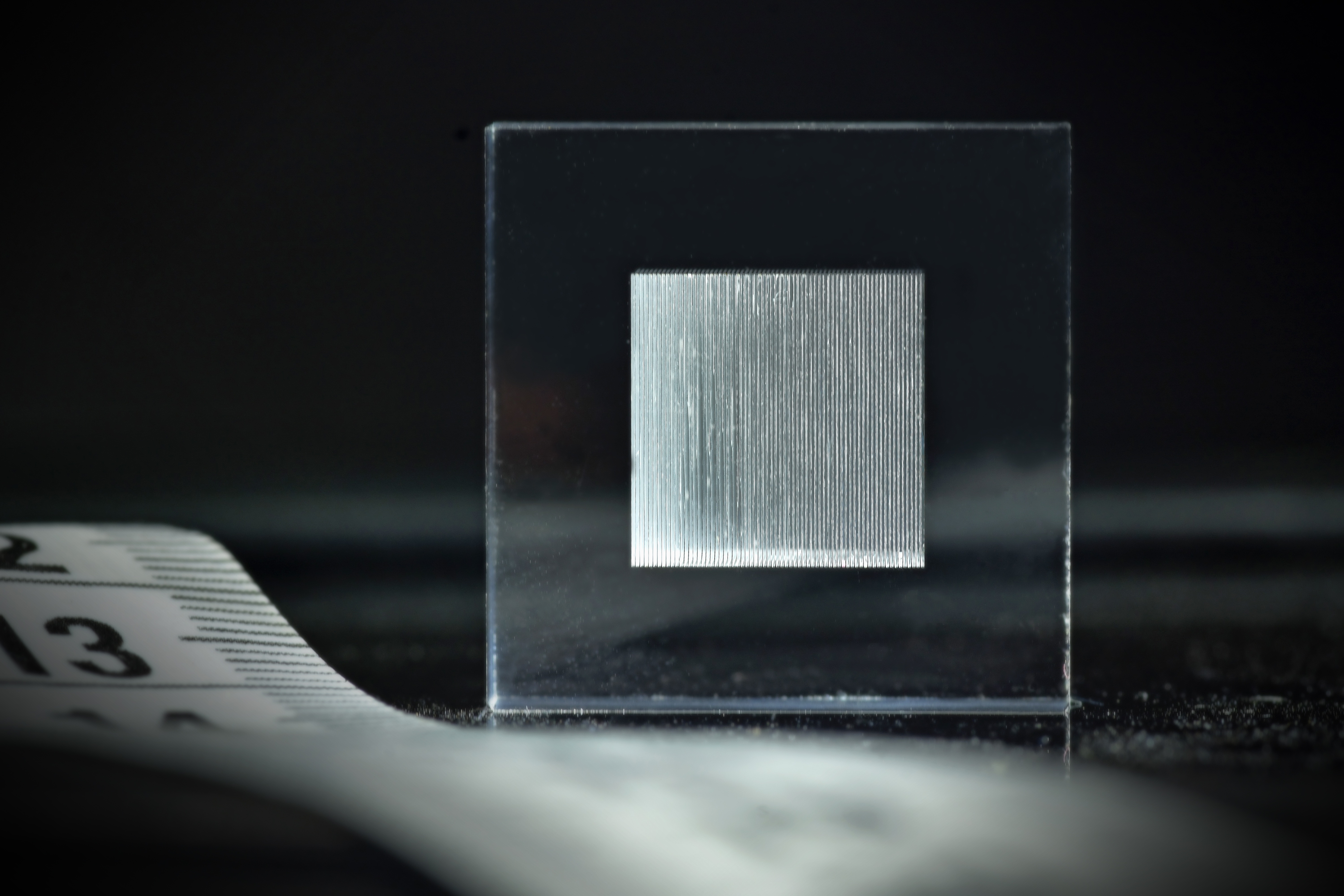

In this example you can see a high quality teraherz glass waveplate. The design of the wave plate is based on form birefringence.

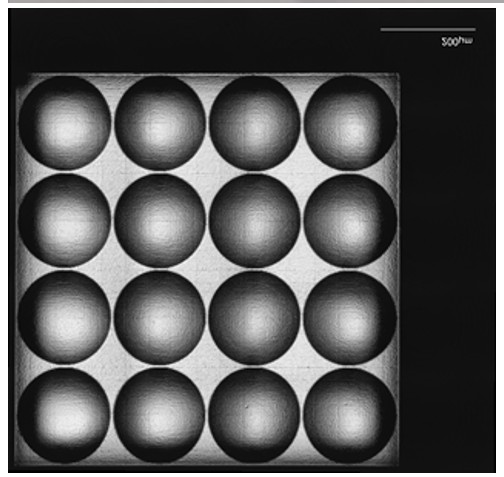

Freeform lenses

SLE technology allows for the production of all types of surface geometries with very high precision. Consequently, optical components can also be manufactured with great precision.

In terms of the optical quality of the surface, there is a lower limit to the roughness that can be achieved. With optimized parameters and without post-processing, the Ra value is approximately 150 nm.

To achieve optical quality, we will polish the surface for you as needed.
